 | KX-3H |  |  | |
 |
||||
| Part-no.: 12.84103 | ||||
| Description | Value | ||
| | frequency MHz | 4,194304 | |
| | holder type | HC-49/U3H | |
| | mode | fundamental | |
| | operating temperature in °C | -20 ~ +70 | |
| | frequency tolerance at +25°C in ppm | ±30 | |
| | temperature tolerance at -20° ~ +70°C in ppm | ±50 | |
| | load capacitance CL in pF | 16 | |
| | series resonance R1 in Ohm max. | 120 | |
| | aging (first year) in ppm | ±5 | |
| | shunt capacitance Co in pF max. | 7 | |
| | drive level in mW | 0,1 | |

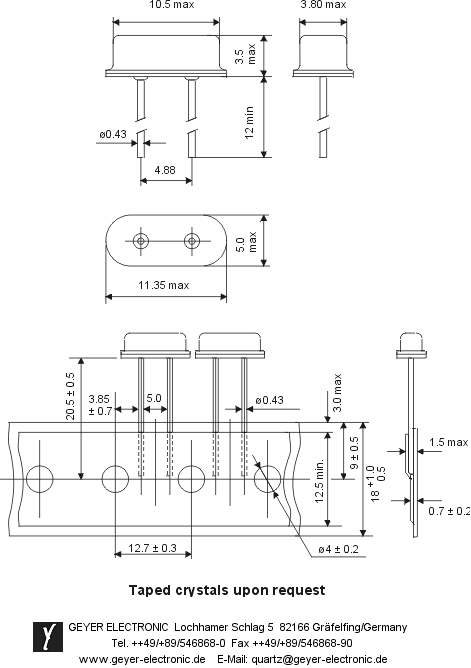

| | size l/w/h in mm | 11,35/5,0/3,50 | |
| | RoHS started from date code | May, 2005 | |
| | - Datasheet pdf | ||
|  |
